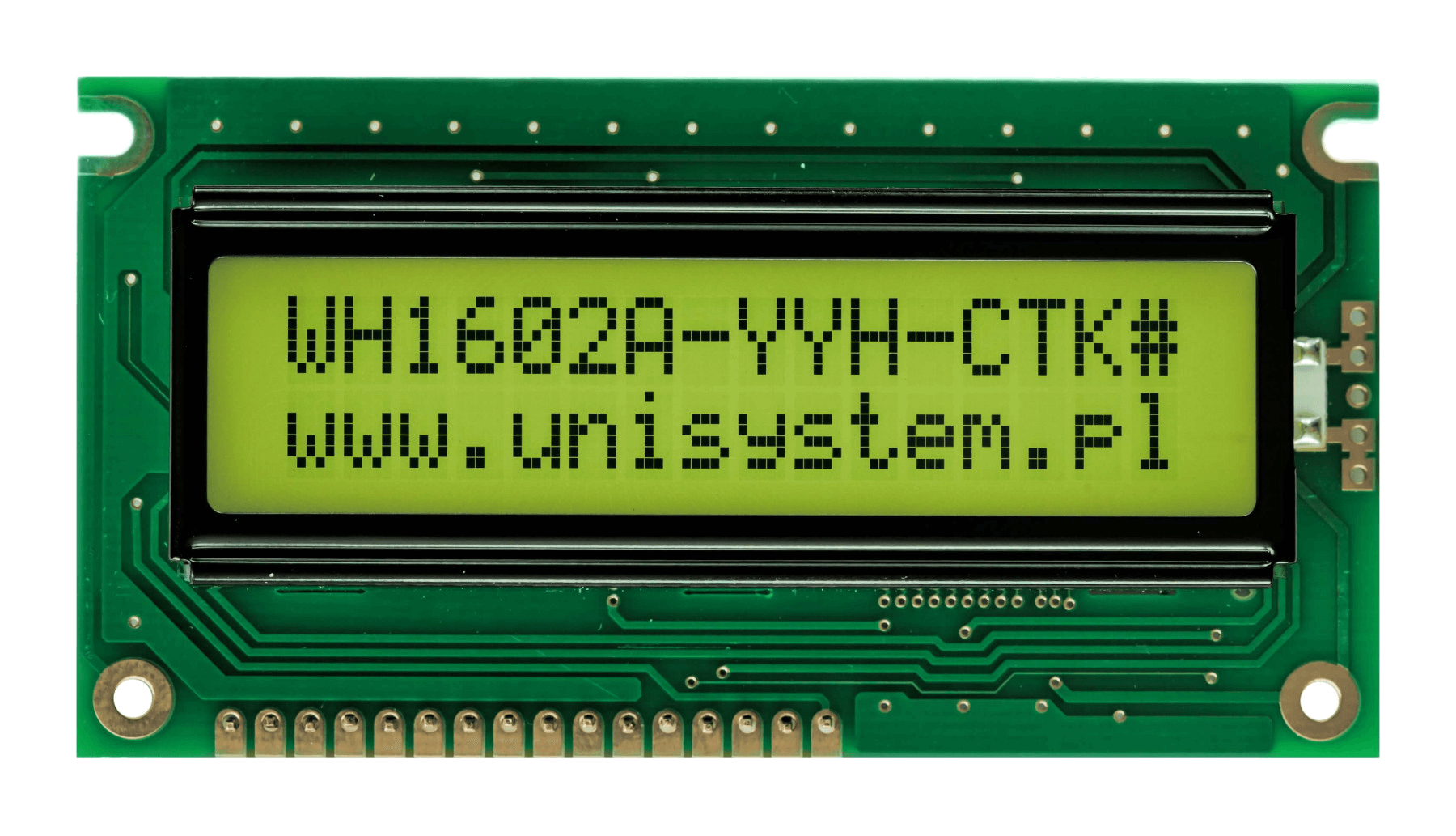

The WH1602A-YYH-CTK# Winstar alphanumeric LCD display is the ultimate solution for those seeking a versatile and reliable display module. This 16×2 character display offers a crisp, clear view with optimal contrast, making it perfect for a wide range of applications from consumer electronics to industrial equipment. Its compact design ensures easy integration into your projects, while the low power consumption makes it an energy-efficient choice. The WH1602A-YYH-CTK# features a robust build, ensuring long-lasting performance and durability in various environments. Its simple interfacing capabilities make it user-friendly, allowing for quick and straightforward setup. Whether you are an engineer, hobbyist, or manufacturer, this display is designed to enhance your product with its superior readability and reliability. Upgrade your display needs with the WH1602A-YYH-CTK# Winstar alphanumeric LCD display and experience the perfect blend of quality and functionality.
| Characters x Rows | 16x2 |
|---|---|
| Content Color | Black |
| Background Color | Yellow-green |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | STN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 56.20x11.5 |

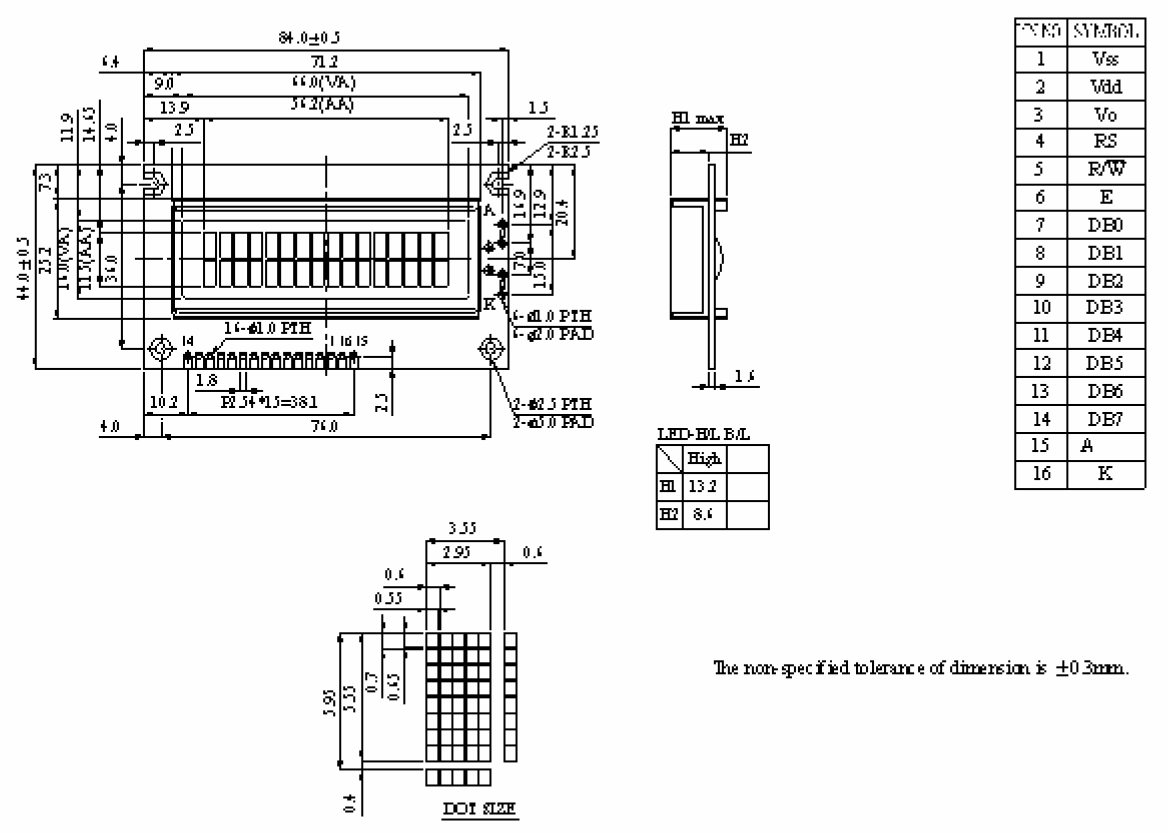

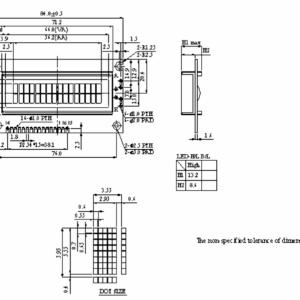

| Outline Dimensions (mm) | 84.0x44.0x13.2 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | |
| Manufacturer | Winstar |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
