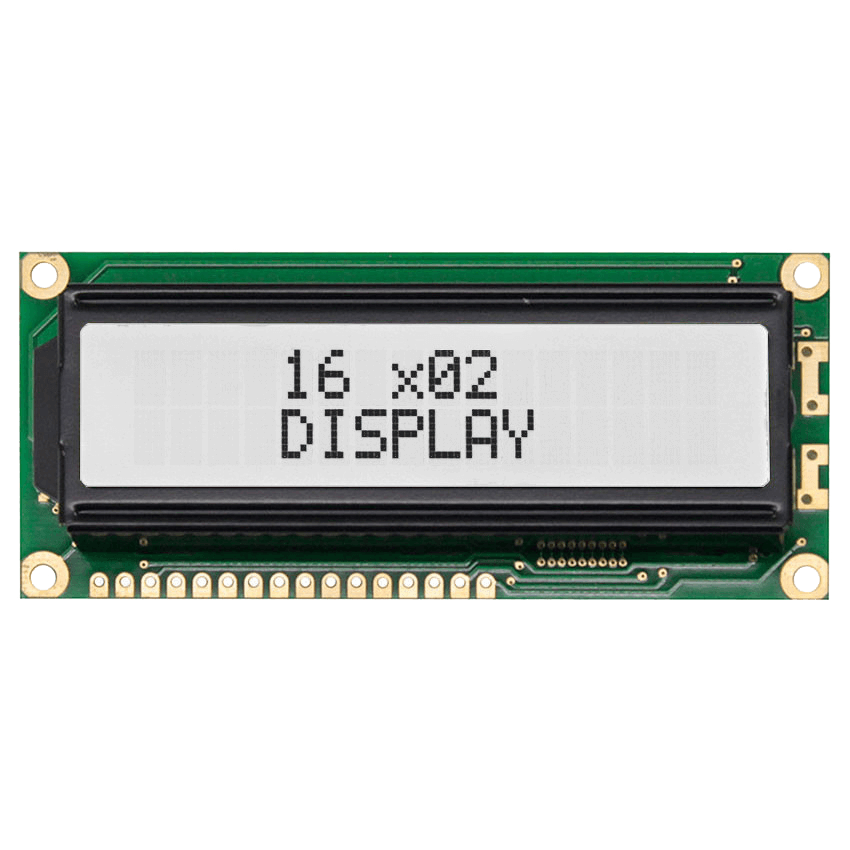

The WH1602J-TFH-CT# Winstar alphanumeric LCD display offers exceptional readability with its clear and crisp 16×2 character format. Designed for versatility and ease of integration, this display panel is perfect for a wide range of applications, from consumer electronics to industrial equipment. With its low power consumption and robust build, the WH1602J-TFH-CT# ensures long-lasting performance and reliability. Its easy interface simplifies connectivity, making it an ideal choice for both novice and experienced engineers. Enhance your project with this high-quality display, providing excellent visibility and durability at an affordable price.
| Characters x Rows | 16x2 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| Module type | COB - Chip on Board |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | 6800, 8080 |
| Controller | HD44780 compatible |
| Fonts | Cyrillic, English |
| Active area (mm) | 56.20x11.5 |

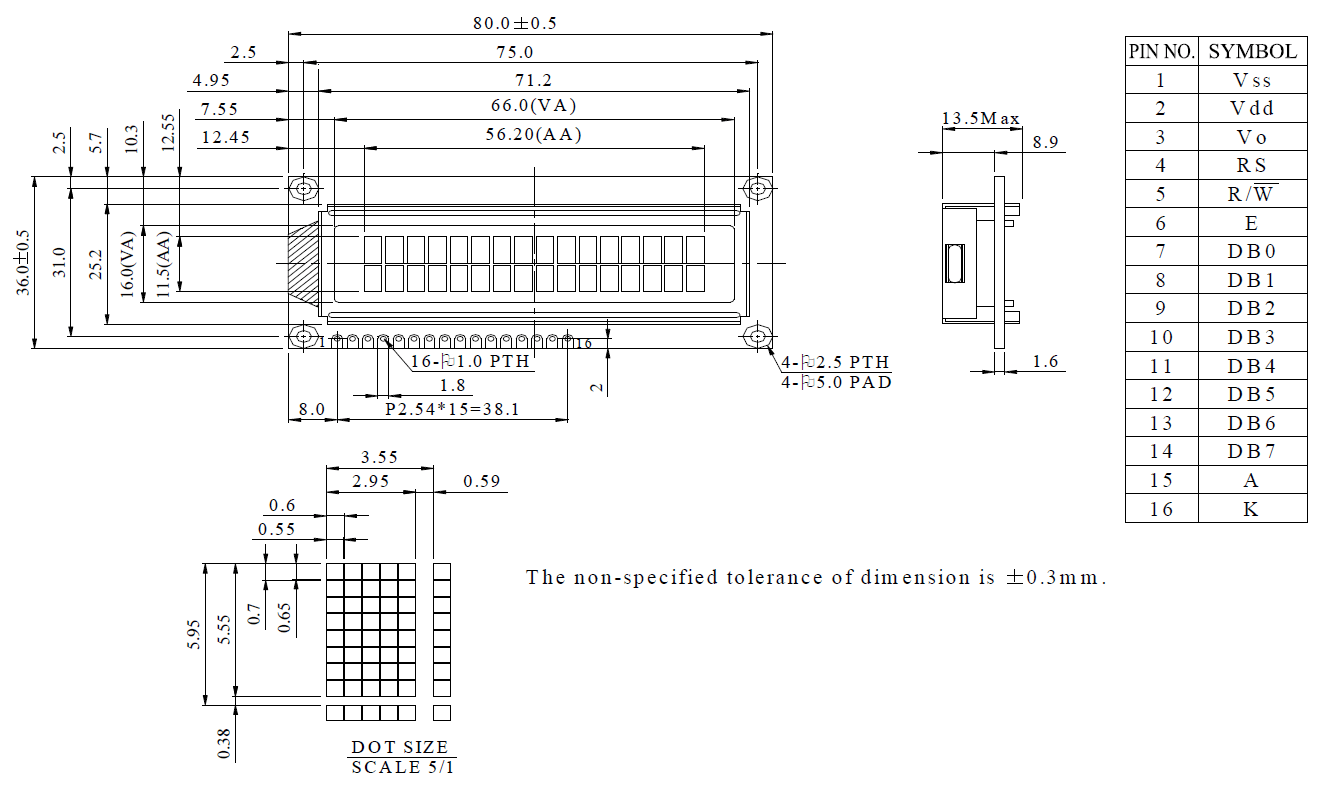

| Outline Dimensions (mm) | 80.0x36.0x13.5 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | |
| Manufacturer | Winstar |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
