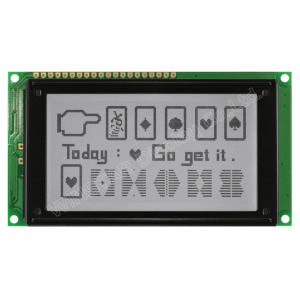

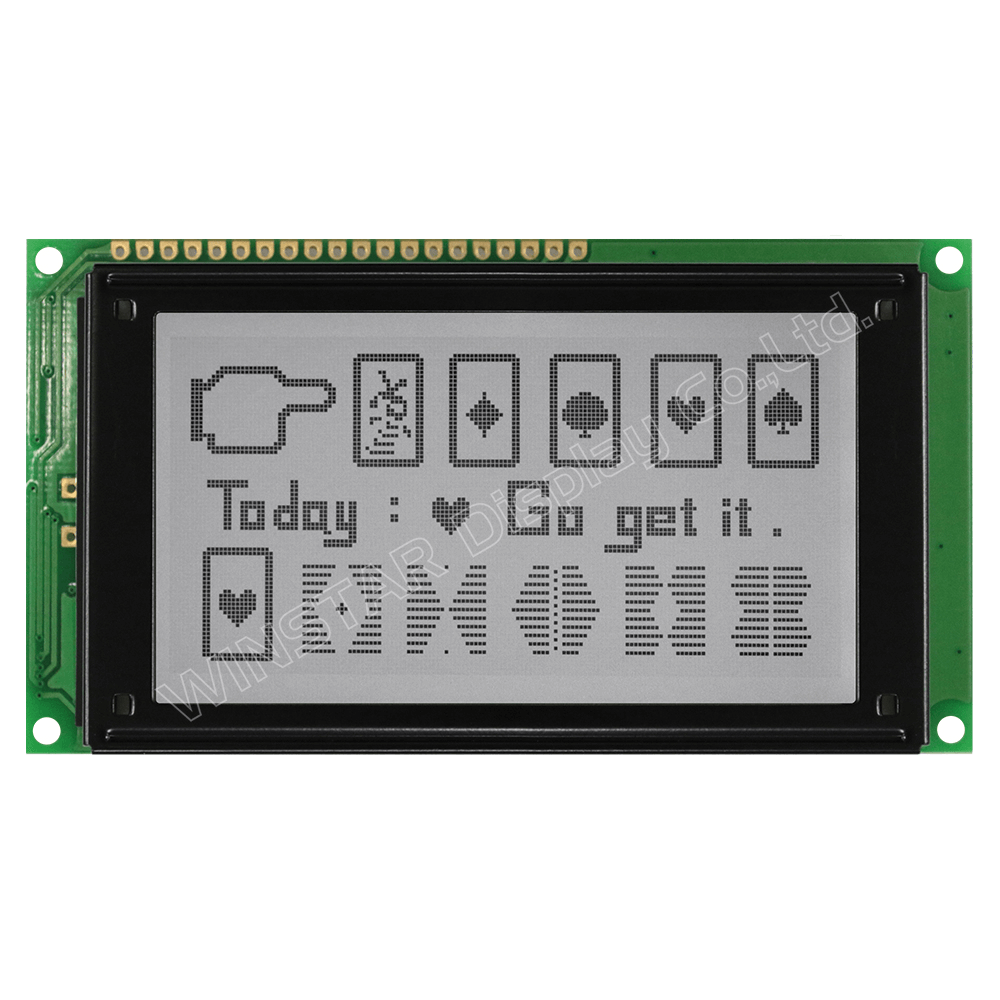

Elevate your display solutions with the WG16080C1-TFH-VZ# Graphic LCD display from Winstar Co. Designed for precision and clarity, this monochrome LCD boasts a crisp 160×80 resolution with black content on a white background, ensuring sharp visuals from a 6:00 viewing direction. The FSTN Positive LCD type with a transflective polarizer maximizes visibility under various lighting conditions. Powered by a robust RA6963 controller and compatible with 8080 interface, WG16080C1-TFH-VZ# offers seamless integration into your projects. Its compact active area of 67.17×33.57 mm and overall dimensions of 100.0×54.0x14.6 mm make it ideal for space-constrained designs. Reliable in extreme environments, it operates efficiently between -20°C to 70°C and stores safely from -30°C to 80°C. Versatile power options with 3.3V and 5V support ensure flexibility in diverse applications. Trust in Winstar's expertise for your display needs and experience unmatched quality with WG16080C1-TFH-VZ#.
| Resolution | 160x80 |
|---|---|
| Content Color | Black |
| Background Color | White |
| Viewing Direction | 6:00 |
| LCD Type | FSTN Positive |
| Polarizer Type | Transflective |
| Interface | 8080 |
| Controller | RA6963 |
| Active area (mm) | 67.17x33.57 |

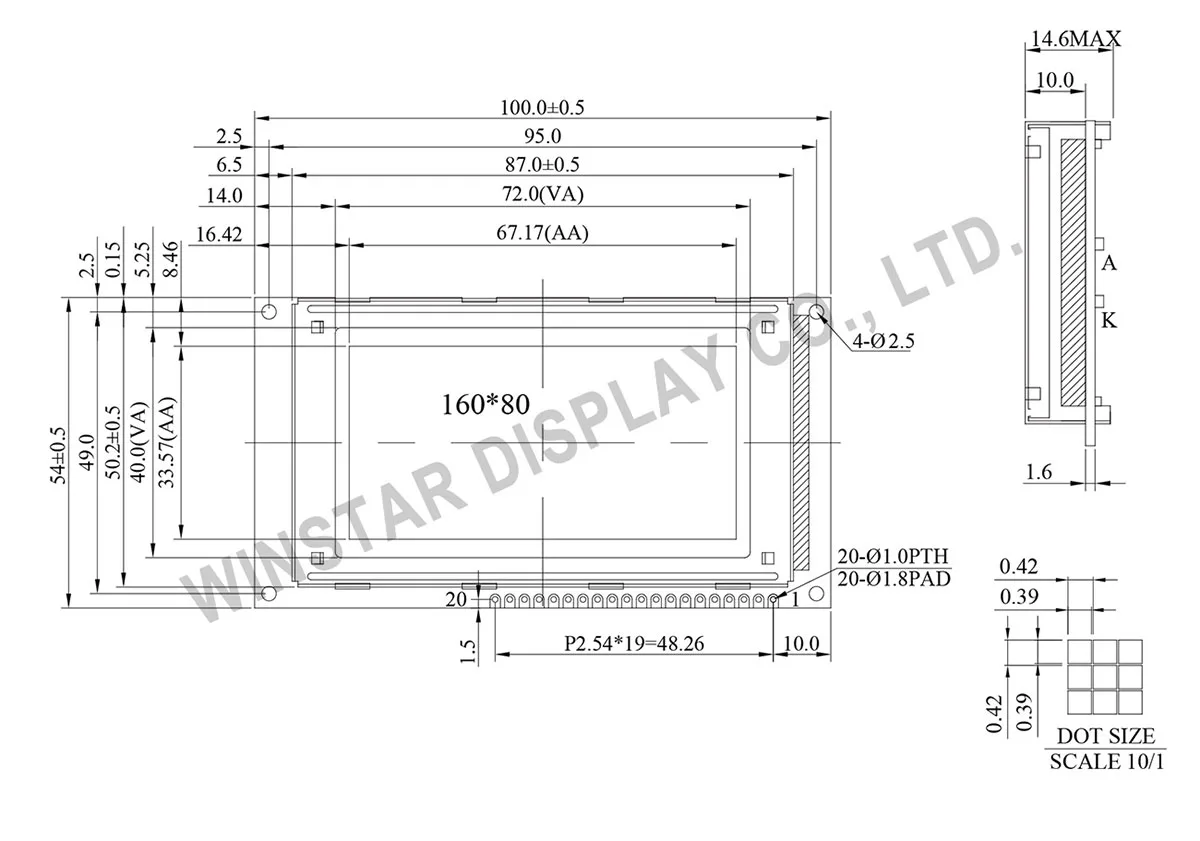

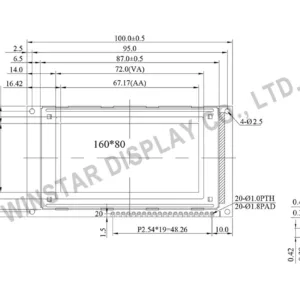

| Outline Dimensions (mm) | 100.0x54.0x14.6 |
| Operating temp. (°C) | -20~70 |
| Storage temp. (°C) | -30~80 |
| Special | 3.3V power supply, 5V power supply |
| Manufacturer | Winstar |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
Apart from controller’s logic voltage supply, to obtain a suitable contrast the display requires an additional voltage. Thanks to an inbuilt voltage generator, there is no need to supply the display with outer voltage.
