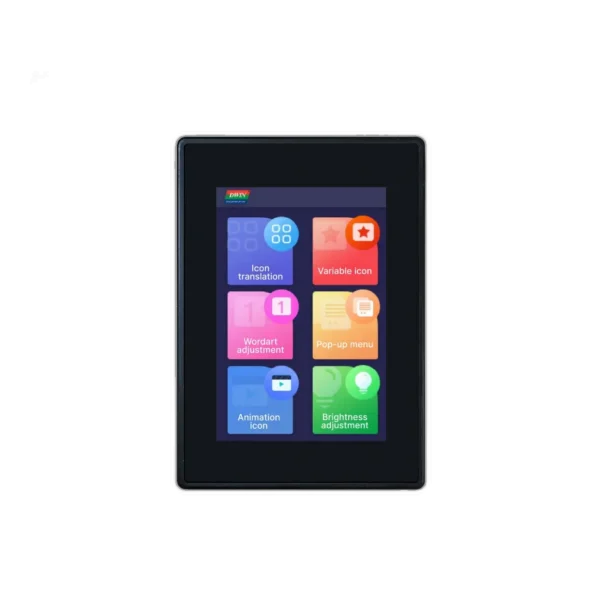

DMG48320T035_15WTR DWIN 3.5″ 320×480 Smart LCD-TFT display

Discover the DMG48320T035_15WTR, a compact 3.5′ smart LCD-TFT display with 320×480 resolution. This industrial-grade screen boasts a wide viewing angle, resistive touch panel, and rugged -20~70°C operating range. Powered by DWIN’s T5L0 ASIC running DGUS II, it offers smooth animations and icon-based UI. With RS232 interface and mounting frame, the DMG48320T035_15WTR is perfect for demanding applications needing a reliable, feature-rich display solution.

Datasheet

Ask our team for:

Size (inch)3.5
Resolution320x480
Aspect ratio16:9
Brightness (cd/m²)200
Viewing DirectionFull
InterfaceUART
Mounting FrameYes
Touch PanelResistive
Active area (mm)49.00x73.40
Outline Dimensions (mm)72.50x103.00
Operating temp. (°C)-20~70
Storage temp. (°C)-30~80
ManufacturerDWIN

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
