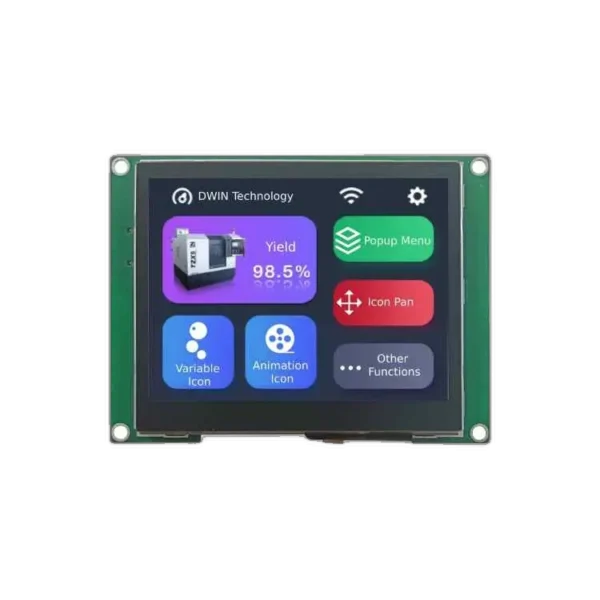

The DMG32240S035_03WN is a rugged 3.5′ smart LCD display designed for harsh outdoor environments. With a 320×240 resolution and 16.7M colors, it delivers crisp visuals even in extreme temperatures from -40°C to 85°C. The display features RS232 and RS485 communication, conformal coating for protection, and runs on the DGUS II system powered by DWIN’s T5L1 chip. Ideal for industrial applications requiring a compact yet durable display solution. The DMG32240S035_03WN combines reliability and performance in a versatile 3.5′ form factor.
| Size (inch) | 3.5 |
|---|---|
| Resolution | 320x240 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 300 |
| Interface | RS232, RS485 |
| Controller | T5L1 |
| Active area (mm) | 70.1x52.6 |
| Outline Dimensions (mm) | 93.0x70.1x10.9 |
| Operating temp. (°C) | -40~85 |
| Storage temp. (°C) | -40~85 |
| Manufacturer | DWIN |
This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.
