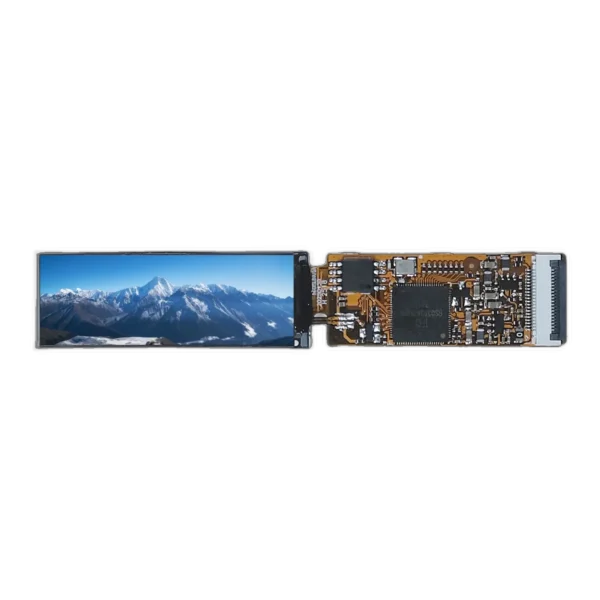

DMG14428F016_05WN DWIN 1.66″ 142×428 Smart LCD-TFT display

Discover the DMG14428F016_05WN, a compact 1.66′ smart LCD-TFT display with 142×428 resolution. Powered by DWIN’s T5F0 ASIC and DGUS II HMI platform, it offers versatile connectivity including UART2, SD card, and touch interface. With a wide -20~70°C operating range and full viewing angles, the DMG14428F016_05WN is ideal for industrial applications requiring a sleek, high-performance display. Experience superior visuals and seamless integration with this innovative DWIN product.

Datasheet

Ask our team for:

Size (inch)1.66
Resolution142x428
Brightness (cd/m²)400
InterfaceUART
ControllerT5F0
Active area (mm)13.16x39.68
Outline Dimensions (mm)44.72x16.00x1.57
Operating temp. (°C)-20~70
Storage temp. (°C)-30~80
ManufacturerDWIN

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

Industrial operating temperature range


This module can operate in a stable and failure-free way for a long period within wide range of temperatures. Thanks to such option, it may be successfully applied e.g. in transportation and automotive industry.

Full observation angles

Full observation angles

Using an IPS/MVA (or a variation thereof) matrix, the display is readable from all angles. There is no grayscale inversion effect that characterizes popular TN matrices. Also, the decrease in contrast when increasing the viewing angle is much lower.
